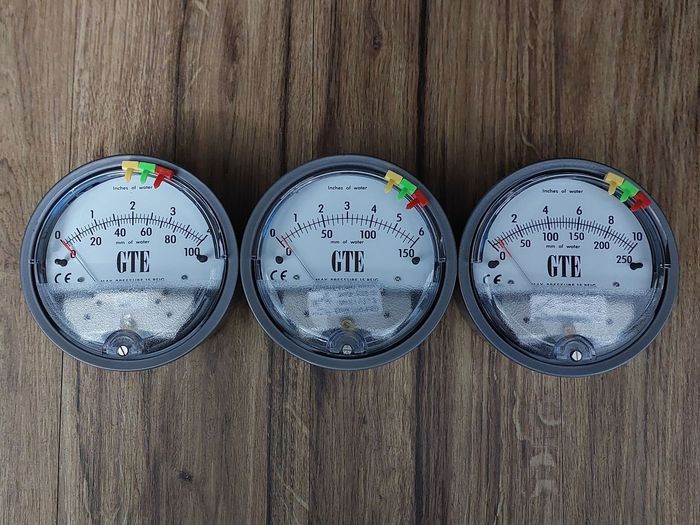

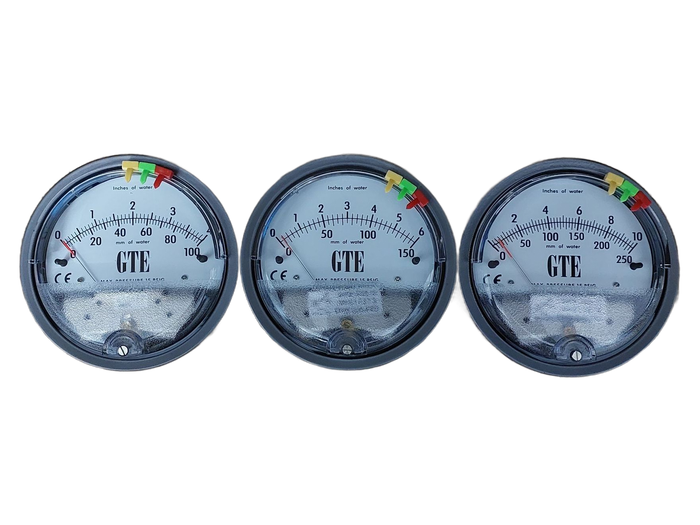

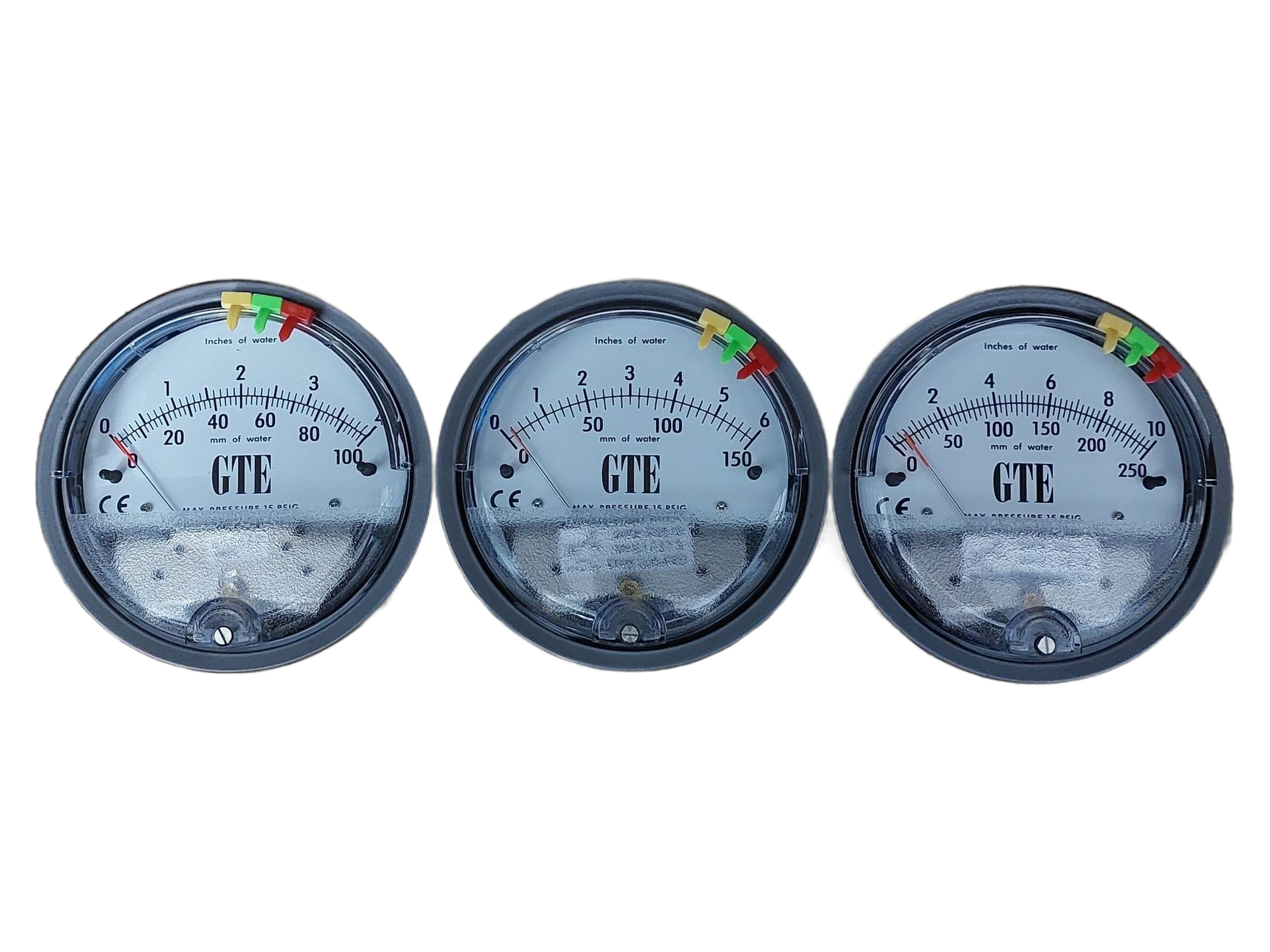

DIFFERENTIAL PRESSURE GAUGE (DUAL MEASUREMENT UNITS)

G-5000 series Differential Pressure Gauge is extensively been applied in pressure of measuring the fan and drum breeze machine, screening out the program resistance, wind velocity, the stove presses, hole plank differential gauge, also be used for burnable the air coal gas specific value with in process control, the automatic valve control, the medical treatment care for the blood pressure equipment and to monitor the breathe pressure.

Measurement units: inches & mm of water

Process Conjunction: High pressure and low pressure hole of 1/8’’

drill tube thread, 2 sets (side and back each) .

Standard Fitting: 2 pcs 1/8’’ NPT head, 2 pcs 1/8’’ spiral plastic tube

and 3 pcs with bolt for bolt card installation.

Casing Material: Cast aluminium press or Nylon with ABS plastic.

Accuracy: Standard +-2% FS

Environmental Temperature: -7 ~ 60 deg C
